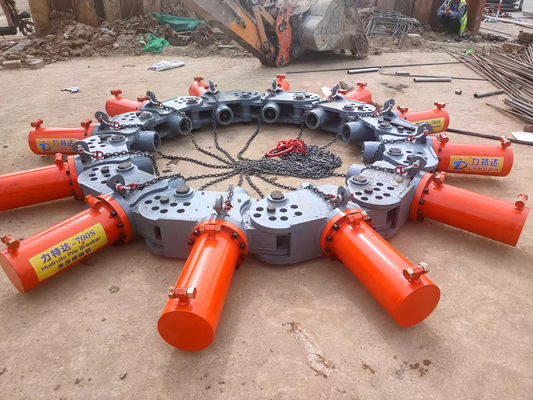

4-18 Module Hydraulic Pile Breaker for 30-40T Excavator with 1700-2000mm Pile Breaking Diameter Range and for Pile Breaking

  • 4-18 Module Hydraulic Pile Breaker for 30-40T Excavator with 1700-2000mm Pile Breaking Diameter Range and for Pile Breaking
  • 4-18 Module Hydraulic Pile Breaker for 30-40T Excavator with 1700-2000mm Pile Breaking Diameter Range and for Pile Breaking
  • 4-18 Module Hydraulic Pile Breaker for 30-40T Excavator with 1700-2000mm Pile Breaking Diameter Range and for Pile Breaking
  • 4-18 Module Hydraulic Pile Breaker for 30-40T Excavator with 1700-2000mm Pile Breaking Diameter Range and for Pile Breaking
Herkunftsort CHINA
Markenname VIBRA
Zertifizierung ISO 9001:2015
Modellnummer SP-700
Min Bestellmenge 1 Set
Preis Verhandlungsfähig
Verpackung Informationen 6 CBM
Lieferzeit 5-20 Tage
Zahlungsbedingungen L/C, T/T, Western Union
Versorgungsmaterial-Fähigkeit 50 Sätze/Monat

Treten Sie mit mir für freie Proben und Kupons in Verbindung.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.

x
Produktdetails
Hervorheben

2000mm Hydraulic Pile Breaker

,

Hydraulic Pile Breaker 4-18 Module

,

40T Excavator Hydraulic Pile Breaker
Hinterlass eine Nachricht
Produkt-Beschreibung
Product parameters:
Maximum pressure of drill rod 600KN
Maximum pressure of a single cylinder 60T
Tonnage of supporting engineering machinery ≥20T
Maximum stroke of hydraulic cylinder 255mm
Drill rod diameter 100mm
Single module weight 230kg
Maximum hydraulic cylinder pressure 33.5 MPa
Pile breaking height ≤ 500 mm
Single module dimensions 875 x 760 x 336 mm
Number of modules(PCS) 4 8 9 10 11 12 13 14 15
Total weight(KG) 1020 1840 2070 2300
2530
2760
2990
3220
 3450
Pile breaking diameter
400-700
750-870
800-1030
 1000-1230
1200-1350
1300-1500
1500-1720

1700-1850

 1850-2000
Applicable excavator tonnage   20-30T 30-40T/hydraulic system
Umbauten:

Hydraulische Maschine zum Brechen von Haufen

Stapelunterbrecher

Stammkopfbrecher
